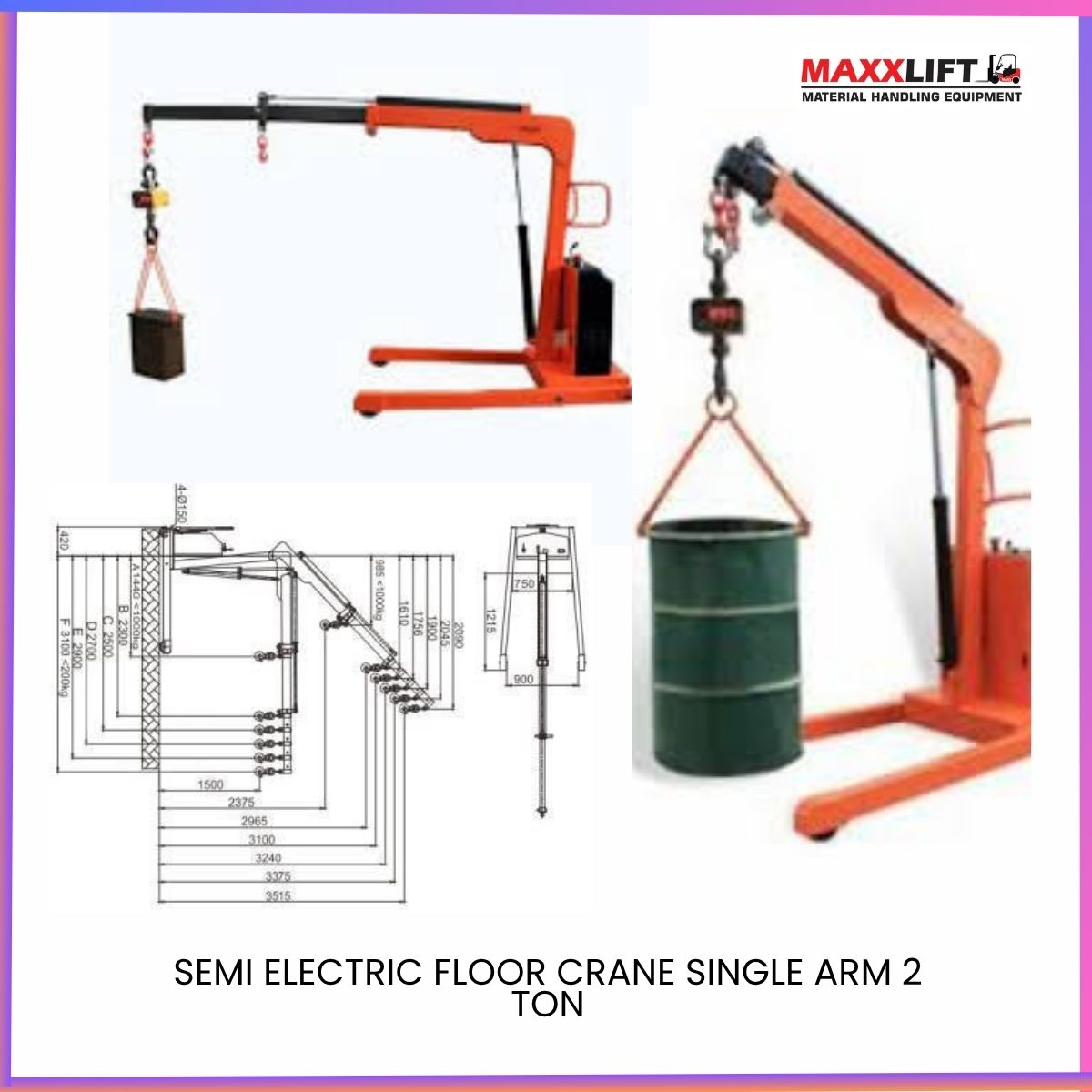

This semi-electric crane is designed for smooth vertical lifting and manual travel movement.
Its telescopic boom provides flexible reach, while foldable stabilizer legs make it compact for storage and transport.
Equipped with a durable hydraulic system, it ensures stable lifting performance with minimal maintenance.
Ideal for precision lifting in workshops, assembly units, warehouses, and industrial material handling tasks.
Its telescopic boom provides flexible reach, while foldable stabilizer legs make it compact for storage and transport.
Equipped with a durable hydraulic system, it ensures stable lifting performance with minimal maintenance.
Ideal for precision lifting in workshops, assembly units, warehouses, and industrial material handling tasks.
Key Features
- Semi-Electric Operation – Electric lift with manual movement for precise control.
- Telescopic Boom Design – Adjustable reach for flexible load handling.
- Compact & Foldable Legs – Easy storage and transport.
- Wide Lifting Range – Suitable for different material sizes and work conditions.
- Durable Hydraulic System – Reliable performance with low maintenance.
- High Stability – Equipped with extended outriggers and safety valves.
- Ideal for Indoor Operations – Smooth, quiet, and efficient lifting solution.
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model No. | MAXX–Semi Electric Single Arm Crane | Product Type | Semi Electric Floor Crane |
| Rated Capacity | 2000 Kg (2 Ton) | Operation Type | Electric Lift / Manual Travel |
| Boom Length (0°) | 440 / 2300 / 2500 / 2700 / 2900 / 3100 mm | Rated Load (0°) | 1000 / 342 / 290 / 250 / 220 / 200 Kg |
| Boom Length (40°) | 985 / 1610 / 1756 / 1900 / 2045 / 2090 mm | Rated Load (40°) | 1000 / 565 / 430 / 345 / 290 / 250 Kg |
| Outrigger Inner Width | 985 mm | Outrigger Outer Width | 1170 mm |
| Net Weight | 466 Kg | Wheel Type | PU-Coated Industrial Wheels |
| Front Wheel Size | Ø150 × 50 mm | Training Wheel Size | Ø75 × 30 mm |
| Lifting Power | Electric Hydraulic | Power Source | 220V AC / 24V DC |
| Frame Material | High-Strength Steel | Control | Push-Button Control Box |
Applications
- Machine loading/unloading operations
- Workshops & maintenance areas
- Automobile & component assembly
- Small warehouses & logistics centres
- Industrial repair & lifting applications
Maintenance & Service
- Check hydraulic oil levels every 6 months.
- Grease joints and wheels periodically.
- Inspect boom pins and outriggers before use.
- MAXXLIFT service centres available in Sonipat, Gurugram, Kundli & Bhiwadi.
Warranty
• 1 Year Warranty on hydraulic, electric, and structural components.
• Lifetime service and parts support from MAXXLIFT Motors Pvt. Ltd.
