Description

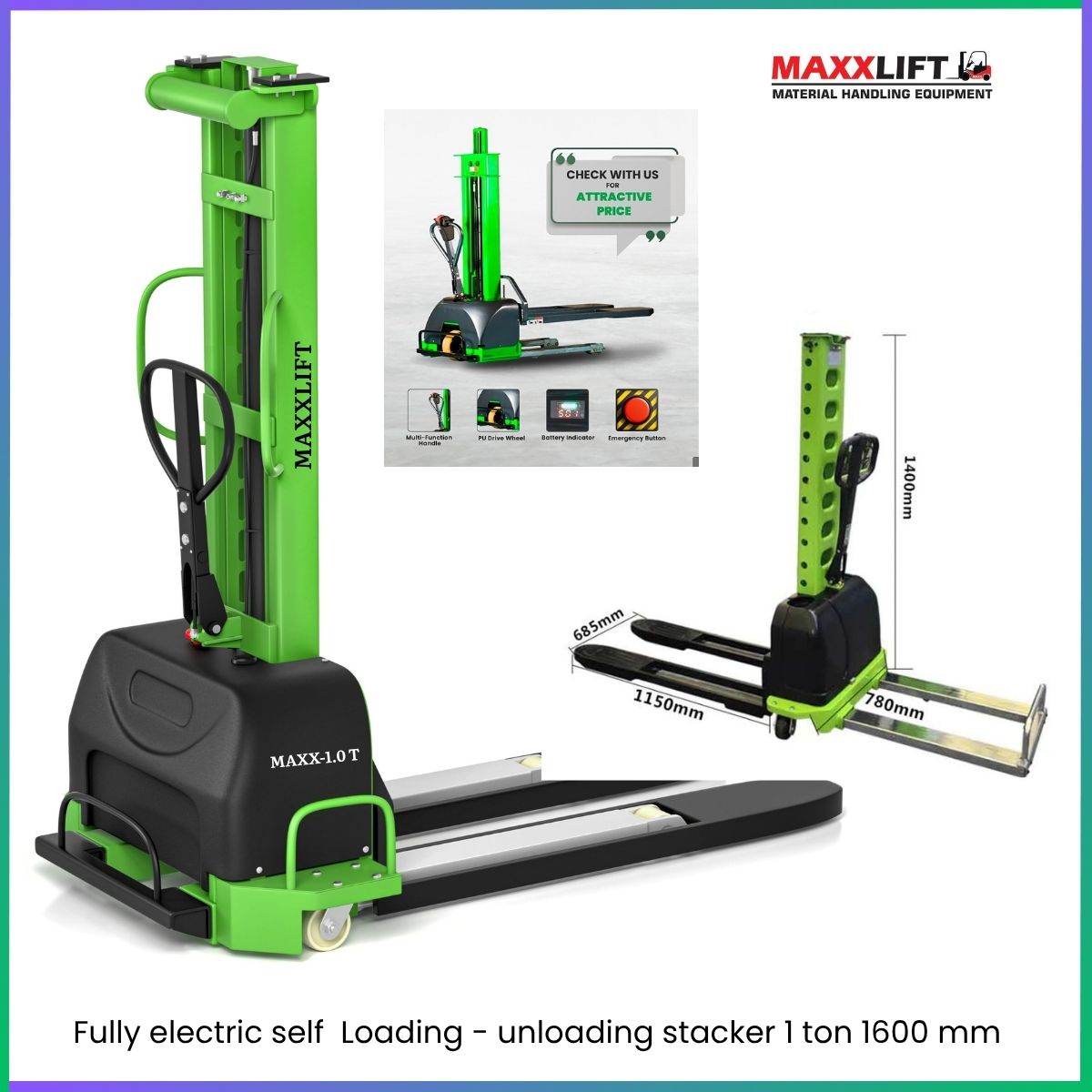

Machine Description
It can lift itself onto trucks or platforms without a ramp saving time and manpower.
The advanced drive motor and battery system ensure smooth operation, silent movement, and zero emission.
Strong construction with solid forks ensures durability and safety during heavy-duty work.
Technical Specifications
| Parameter | Detail | Parameter | Detail |
|---|---|---|---|
| Model No. | MAXX-SL-10 | Rated Capacity | 1000 kg (1 Ton) |
| Lift Height | 1600 mm | Fork Length | 1195 mm |
| Fork Width | 550 mm (Adjustable) | Type | Self-Loading / Unloading Fully Automatic |
| Drive Motor | 1.5 kW AC Electric | Lift Motor | 2.2 kW Hydraulic Power Pack |
| Battery Voltage | 24 V DC | Battery Capacity | 210 Ah Lead-Acid (Optional Lithium) |
| Charging Voltage | 220 V | Charging Time | 5 Hours (Intelligent Auto Stop) |
| Travel Speed | 4–5 km/h | Working Hours | 6–8 Hours per Charge |
| Mast Type | Double Stage Heavy-Duty Steel | Ground Clearance | 40 mm |
| Turning Radius | 1450 mm | Brake System | Electromagnetic with Parking Brake |
| Tyres | Polyurethane non-marking | Paint Finish | MAXXLIFT Green and Black Powder Coat |
Additional Technical Details
| Parameter | Detail | Parameter | Detail |
|---|---|---|---|
| Type | Fully Electric Self-Loading Stacker | Model | PNXFESLS-0513 |
| Capacity | 500 kg | Load Centre Distance | 500 mm |
| Fork Outer Spacing | 685 mm | Fork Length | 1195 mm |
| Operation Type | Walking Type | Fork Lift Height | 1300 mm |
| Fork Starting Height | 81 mm | Wheel Base | 974 mm |
| Vehicle Length | 1650 mm | Body Width | 658 mm |
| Body Thickness | 409 mm | Front Track | 518 mm |
| Single Fork Width | 253 mm | Minimum Turning Radius | 1173 mm |
| Turtle Speed | 0.5 km/h | Motor | DC 0.6 kW |
| Lift Motor | DC 2.2 kW | Battery Type | Lithium 48 V |
| Battery Capacity Dry | 15 Ah | Battery Weight | 382 KG |
| Charging Voltage | 220 V | ||
Key Features
- Fully automatic operation with electric lift and travel
- Self-loading and unloading without ramp or dock
- Compact design for narrow aisle movement
- Strong mast with 3 m lift height
- Low noise zero emission operation
- Easy-to-use control handle with speed adjustment
- Maintenance-free drive system
Where It Is Used
- Warehouse and godown operations
- Vehicle loading and unloading
- Manufacturing units and assembly lines
- Small logistic centres and retail storage
- Factories with limited space or no dock facility
Services and Support
MAXXLIFT provides full installation and training at site. Preventive maintenance and on-site service available within 24 to 48 hours. Spare parts and batteries available at Sonipat, Gurugram, Kundli, and Bhiwadi branches.
Warranty
Standard warranty 12 months from delivery covering electrical and mechanical systems. Extended warranty and AMC available on request.
Delivery
Normal delivery 2 to 3 weeks after order confirmation and advance payment. Immediate dispatch available for ready stock units.
Delivery Locations
PAN India coverage including Delhi NCR, Haryana, Punjab, Rajasthan, Uttar Pradesh, Gujarat, and Maharashtra.
Why Choose MAXXLIFT
- Compact multifunction design
- Time-saving self-loading mechanism
- Zero emission and low maintenance
- High reliability and operator safety
- Proven after-sales support network
