Description
Key Features
- 5 Ton Load Capacity – Designed for heavy-duty applications.
- Manual Hydraulic System – Smooth lifting and controlled lowering.
- Hand Brake Equipped – Added safety for operations on inclined surfaces.
- High-Strength Alloy Forks – Lightweight yet durable construction.
- PU Wheels – Ensures silent movement and protects warehouse flooring.
- Low Maintenance – Reliable AC-type hydraulic pump with long service life.
- Fork Length: Optimized for large pallet compatibility and safety
- Compact Design – Easy to operate and manoeuvre in tight spaces
- Heavy-Duty Frame – Made with strong, durable steel for long-term performance
- Manual Operation – Easy-to-use pallet truck requiring minimal physical effort
- Ergonomic Handle – Comfortable grip and smooth control with lever-operated mechanism
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|

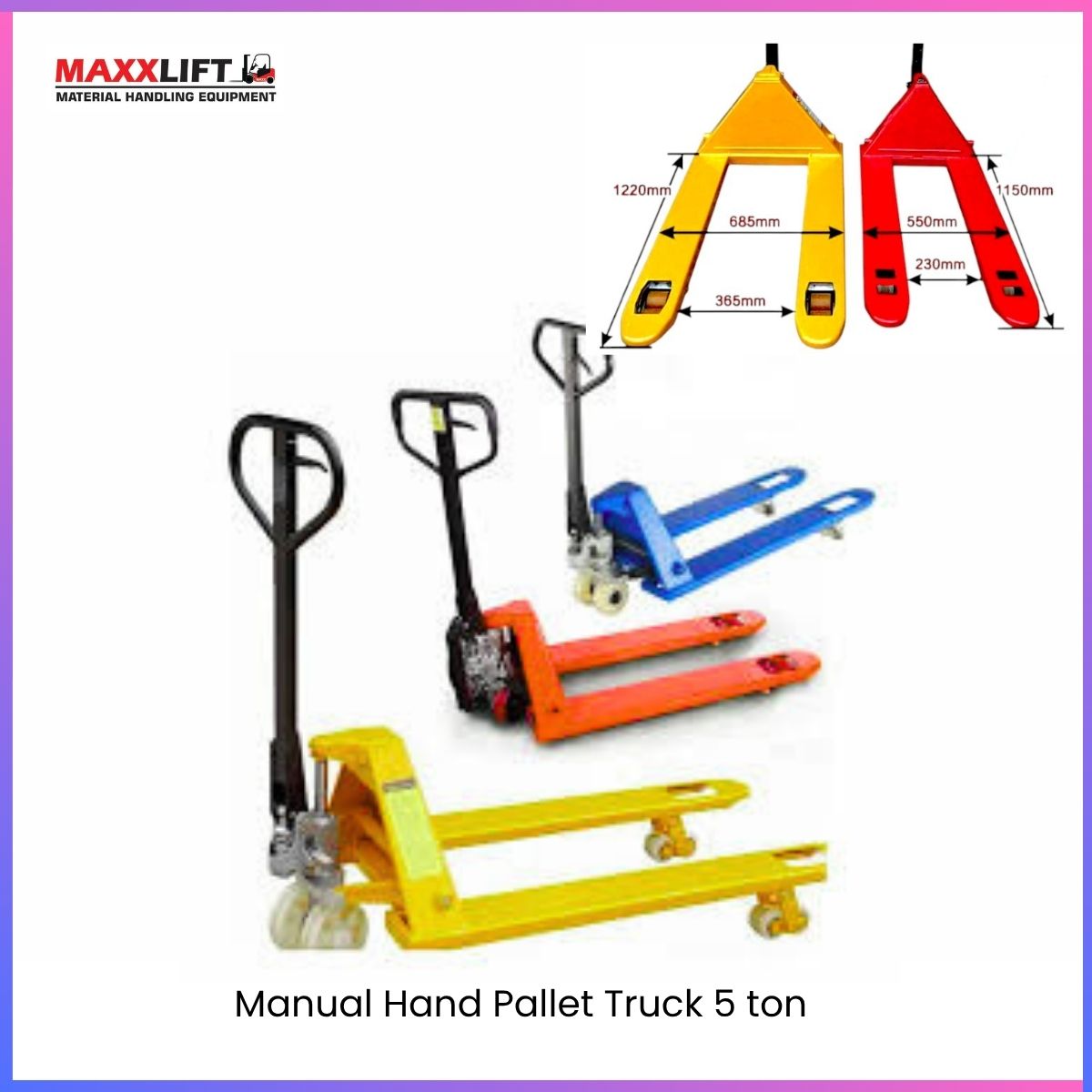

| Model No. | MAXX-HPT5T | Product Type | Manual Hydraulic Hand Pallet Truck |
| Load Capacity | 5000 Kg | Fork Length | 1150 mm |
| Maximum Platform Height | 170 mm | Fork Overall Width | 540 mm |
| Single Fork Width | 160 mm | Load Centre Distance | 475 mm |
| Front Wheel Size | Φ80 × 60 mm | Rear Wheel Size | Φ200 × 50 mm |
| Wheel Material | Polyurethane (PU) | Net Weight | 90 Kg |
| Operation Type | Manual Hydraulic | Body Material | High-Strength Alloy Steel |
| Pump Type | AC Hydraulic Pump |
Applications
- Heavy-duty warehouse loading/unloading
- Industrial logistics & storage areas
- Manufacturing & packaging units
- Transport hubs and construction sites
Maintenance & Service
- Use Hydraulic Oil No. 32/46 for pump refill.
- Regularly grease wheel bearings for smooth operation.
- Inspect handle linkage & seals every 6 months.
- Available service centres: Sonipat, Gurugram, Kundli, Bhiwadi
Warranty
• 1 Year Warranty on hydraulic and structural components.
• Spare parts and after-sales service provided by MAXXLIFT Motors Pvt. Ltd.
Contact Details
MAXXLIFT MOTORS PRIVATE LIMITED
Main Highway NH-44, GT Karnal Road, Kundli, Sonipat – Opposite KFC Restaurant, Haryana
Mobile: 9811679096, 7678272743, 9950921878, 9218058170
Website: www.maxxlift.in
