Product Description

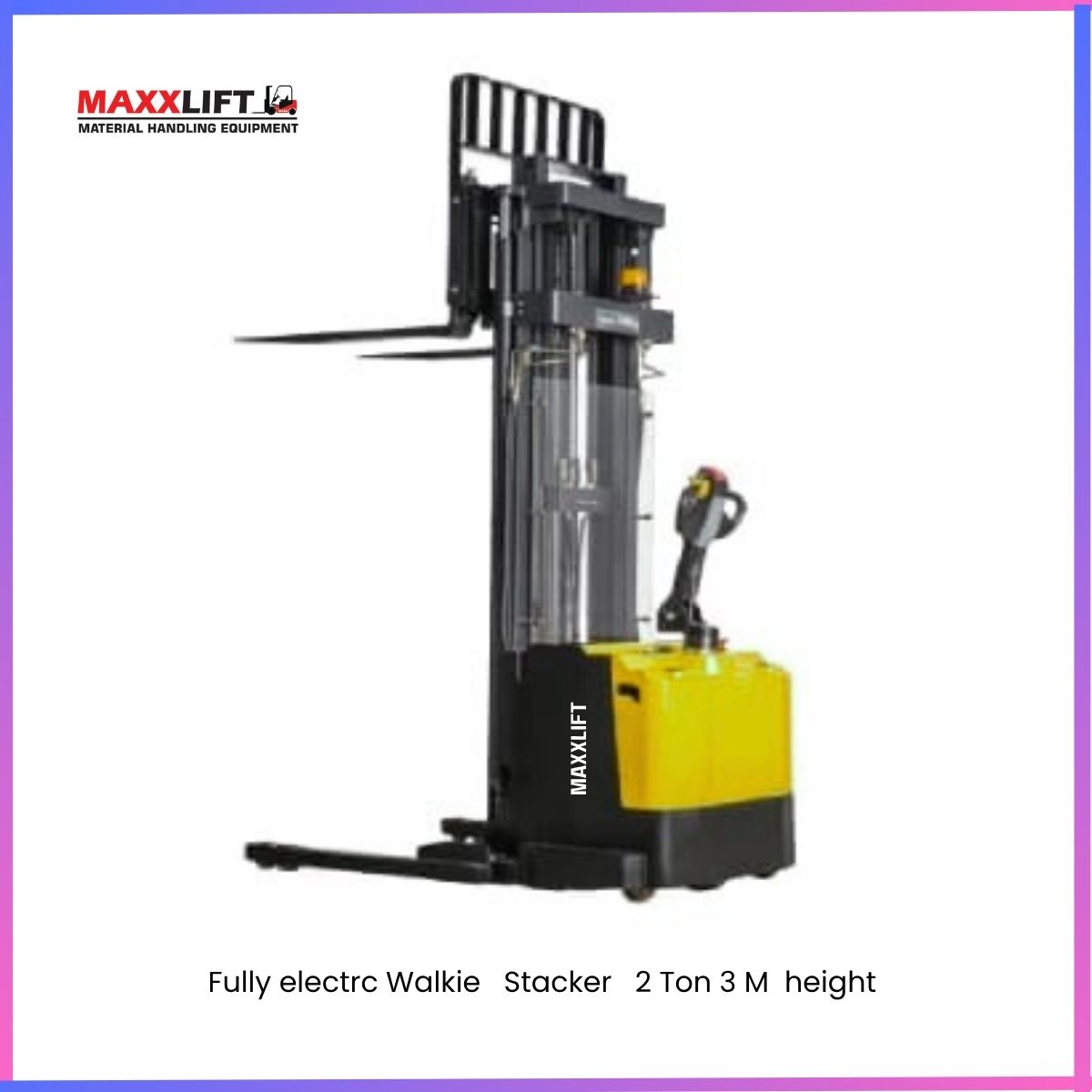

The 2 Ton Fully Electric Walkie Stacker is designed for easy operation, minimal maintenance, and maximum efficiency.
It features a strong steel frame, energy-efficient motor, and ergonomic handle for precise control.
The machine is ideal for narrow aisles and smooth surfaces, offering safe and stable lifting for pallets and materials in industrial environments.
Technical Specifications
| Parameter | Detail | Parameter | Detail |
|---|---|---|---|
| Model Name | MAXX-FEWS -2 T | Rated Load Capacity | 2000 kg (2 Ton) |
| Lifting Height | 3000 mm | Minimum Gantry Height | 1805 mm |
| Maximum Raising Height | 3010 mm | Minimum Fork Height | 90 mm |
| Fork Width | 800 mm | Fork Outer Width | 680 mm – 330 mm |
| Load Centre | 450 mm | Fork Size | 1150 × 150 × 6 mm |
| Load Bearing Wheels | 74 × 70 mm | Steering Wheels | 120 × 50 mm |
| Drive Motor | 1.5 kW | Operation Type | Walk-Behind Fully Electric |
| Power Supply | 24 V Battery | Battery Charging Voltage | 12V 65Ah × 2 |
| Turning Radius | 1450 mm | Working Hours | 6–8 hours per charge |
| Travel Speed | 4–5 km per hour | Paint Finish | MAXXLIFT Red and Black Automotive Coating |
Key Features
- Fully electric operation with high efficiency
- Compact design ideal for narrow aisles
- Lifts up to 3 meters safely and smoothly
- Robust steel mast for long life and stability
- Maintenance-free battery with easy charging
- Low noise zero-emission operation
- Ergonomic control handle for comfortable use
Applications
- Warehouses and storage facilities
- Packaging and logistics centres
- Manufacturing and assembly plants
- Loading and unloading zones
- Industrial and commercial stockrooms
Services and Support
- MAXXLIFT provides complete after-sales support including installation, training, and preventive maintenance.
- On-site service is available within 24–48 hours.
- Genuine spare parts stocked at Sonipat, Gurugram, Kundli, and Bhiwadi branches.
Warranty
Standard warranty 12 months from the date of delivery covering electrical and mechanical components under normal use.
Extended warranty and annual maintenance contracts available on request.
Delivery Time
Normal delivery 2–3 weeks after order confirmation and advance payment.
Immediate delivery available for ready stock units.
MAXXLIFT supplies and services across India including Delhi NCR, Haryana, Punjab, Rajasthan, Uttar Pradesh, Gujarat, and Maharashtra.
Why Choose MAXXLIFT
- Indian engineering and manufacturing excellence
- High performance fully electric stackers
- Reliable design with long service life
- Quick service support and easy spare availability
- Trusted by industries nationwide
