Description
Product Description

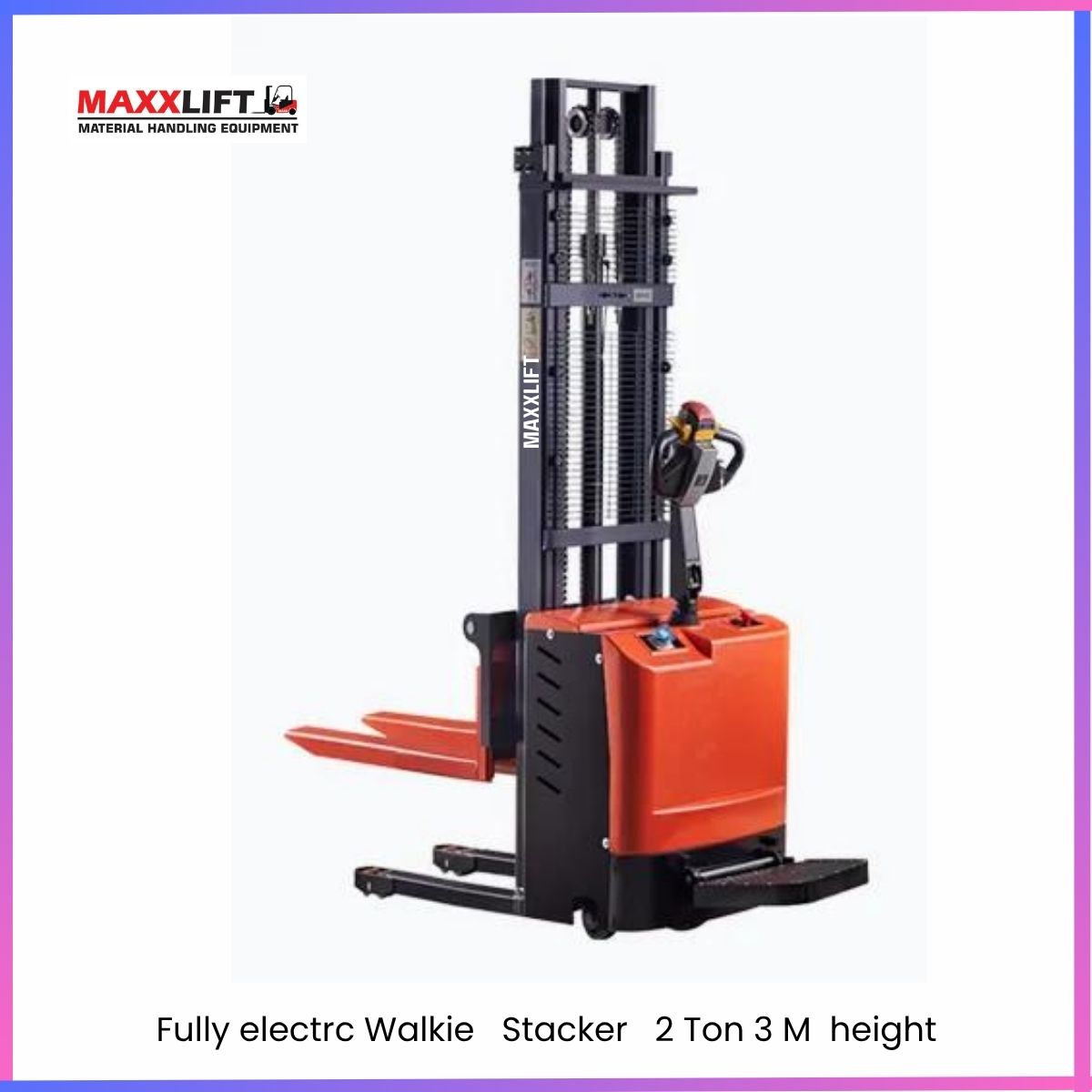

Its fully automatic lifting and lowering system is perfect for pallet stacking and loading work.
Equipped with a reinforced mast and ergonomic tiller handle, it provides excellent visibility and control.
The compact structure allows easy movement in narrow aisles, ensuring productivity and safety in industrial environments.
Technical Specifications
| Parameter | Detail | Parameter | Detail |
|---|---|---|---|
| Model No. | TIL-2 Ton Fully Electric Pallet Stacker | Type | Battery Operated Fully Automatic |
| Rated Load Capacity | 2000 kg (2 Ton) | Max Lifting Height | 2000 mm |
| Min Fork Height from Ground | 85 mm | Door Frame Height (Lowered) | 2000 mm |
| Fork Width (Outside / Inside) | 640 mm | Fork Length | 1150 mm |
| Overall Vehicle Length | 2500 mm | Overall Vehicle Width | 800 mm |
| Front Wheel Dimension | 74 × 70 mm | Load Centre | 800 mm |
| Battery Voltage | 24 V | Battery Capacity | 240 Ah |
| Charger Type | 12V65 AH | Motor Power | 24 V / 2.2 kW |
| Travel Speed (Loaded / Unloaded) | 4–5 km per hour | Working Time | 6–8 Hours per Charge |
| Mast Type | Double Stage Steel Mast | Turning Radius | 1450 mm |
| Brake Type | Electromagnetic with Parking Brake | Finish | Orange and Black Powder Coating |
Key Features
- Fully electric operation for lifting and travel
- Compact design for easy manoeuvrability in narrow spaces
- Strong mast and stable base structure for safety
- Zero emission and low maintenance cost
- Long battery backup with intelligent charger
- Heavy-duty steel forks for stable lifting
- Ergonomic tiller handle with control switches
Applications
- Warehouses and logistics centres
- Manufacturing and assembly units
- Loading and unloading bays
- Packaging and storage facilities
- Industrial plants and distribution hubs
Services and Support
MAXXLIFT provides full installation, operator training, and after-sales maintenance support.
On-site service available within 24–48 hours.
Spare parts and technical assistance offered through Sonipat, Gurugram, Kundli, and Bhiwadi branches.
Warranty
Standard warranty 12 months from delivery covering major electrical and mechanical components under normal working conditions.
Extended warranty and AMC available upon request.
Delivery Time
Standard delivery within 2–3 weeks after order confirmation and advance payment.
Faster shipment available for ready stock models.
Delivery Locations
Nationwide delivery including Delhi NCR, Haryana, Punjab, Rajasthan, Uttar Pradesh, Gujarat, and Maharashtra.
Why Choose MAXXLIFT
- Indian manufacturing and engineering excellence
- Energy-efficient design for low running cost
- Long service life with sturdy construction
- Full technical support and spare part availability
- Trusted brand for electric forklifts and stackers
