Description

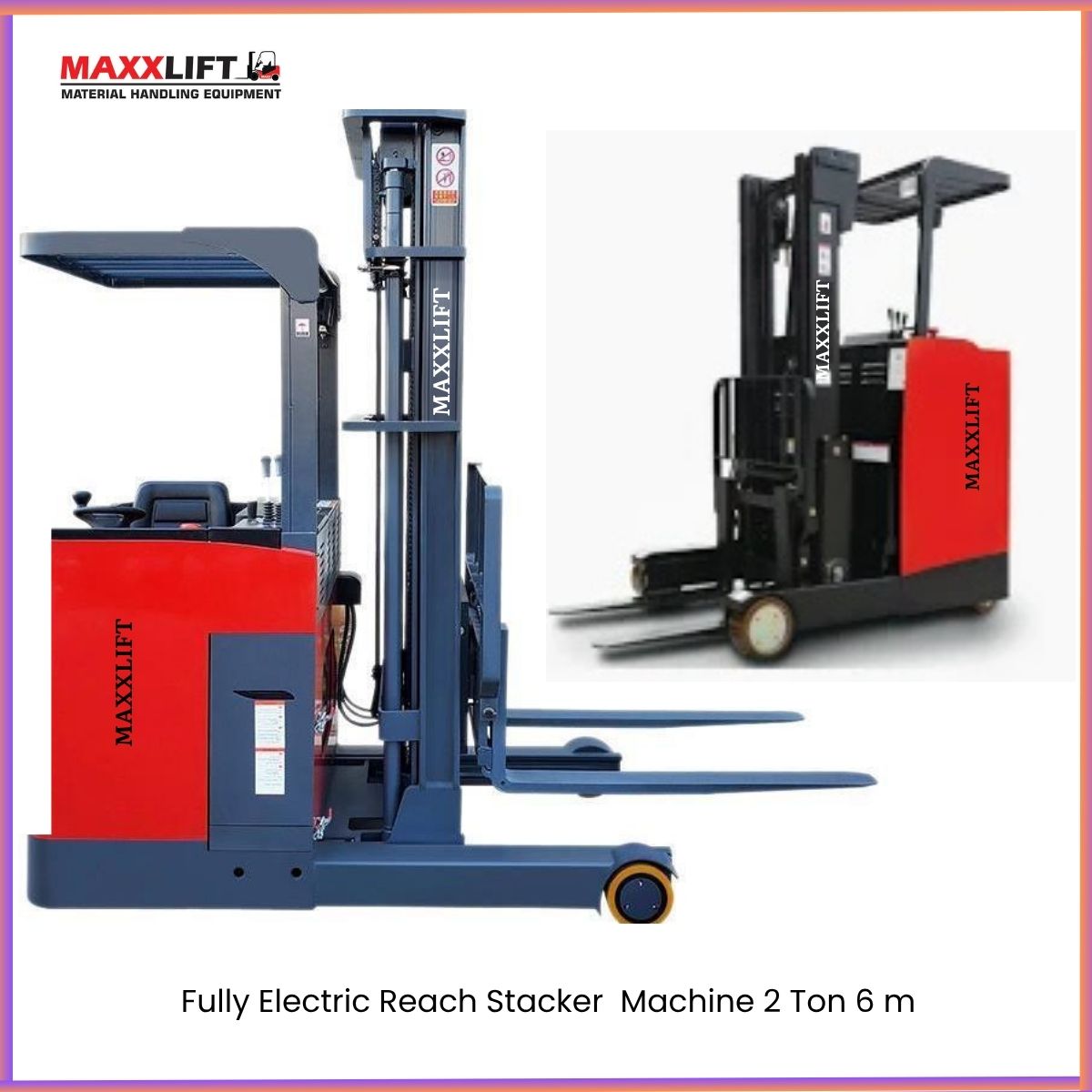

Machine Description
The operator can drive it from the side position providing excellent control and reduced turning radius.
Its electric drive system offers quiet performance, zero emission, and low running cost.
The strong frame and forged forks ensure safe operation with loads up to 2 Ton.
Technical Specifications
| Parameter | Detail | Parameter | Detail |
|---|---|---|---|
| Model No. | MAXX-WH Electric Forklift | Application | Warehouse Material Handling |
| Type | Longitudinal Stacker | Power Source | Battery Electric |
| Lifting Capacity | 2000 kg (2 Ton) | Lift Height | 5.5 m |
| Fork Length | 1070 mm | Fork Width | 550 mm (adjustable) |
| Drive Type | Electric Reach Type | Operating Position | Side Drive Compact Design |
| Battery Type | Lead Acid or Optional Lithium | Motor Type | AC Electric Motor |
| Steering System | Hydraulic Power Assist | Brake System | Electromagnetic with Parking Brake |
| Tyres | Polyurethane Non-Marking | Working Time | 6 to 8 Hours per Charge |
| Charging Voltage | 220 V | Charging Time | 4 to 5 Hours |
| Frame Material | Heavy Duty Steel Construction | Paint Finish | Red and Black |
Where It Is Used
- Warehouses and distribution centres
- Manufacturing plants and packaging areas
- Cold storage and logistics units
- Retail storage and pallet handling systems
- Factories requiring high reach stacking in narrow aisles
Services and Support
MAXXLIFT provides full-service installation and operator training. Preventive maintenance and breakdown support available within 24 to 48 hours. Spare parts and accessories are available at Sonipat, Gurugram, Kundli, and Bhiwadi branches.
Warranty
Standard warranty 12 months from date of delivery for major mechanical and electrical components. Extended warranty and annual maintenance contract available upon request.
Delivery Details
Delivery period 2 to 3 weeks after order confirmation and advance payment. Faster delivery possible for ready stock models.
We deliver across India including Delhi NCR, Haryana, Punjab, Rajasthan, Uttar Pradesh, Gujarat, Maharashtra, and all major industrial locations.
Why Choose MAXXLIFT
- Compact side-drive design for easy operation
- Heavy duty steel mast and frame
- Smooth hydraulic lifting up to 5.5 meters
- Zero emission low noise operation
- Long battery life with efficient AC motor
- Reliable after-sales support across India
