Description

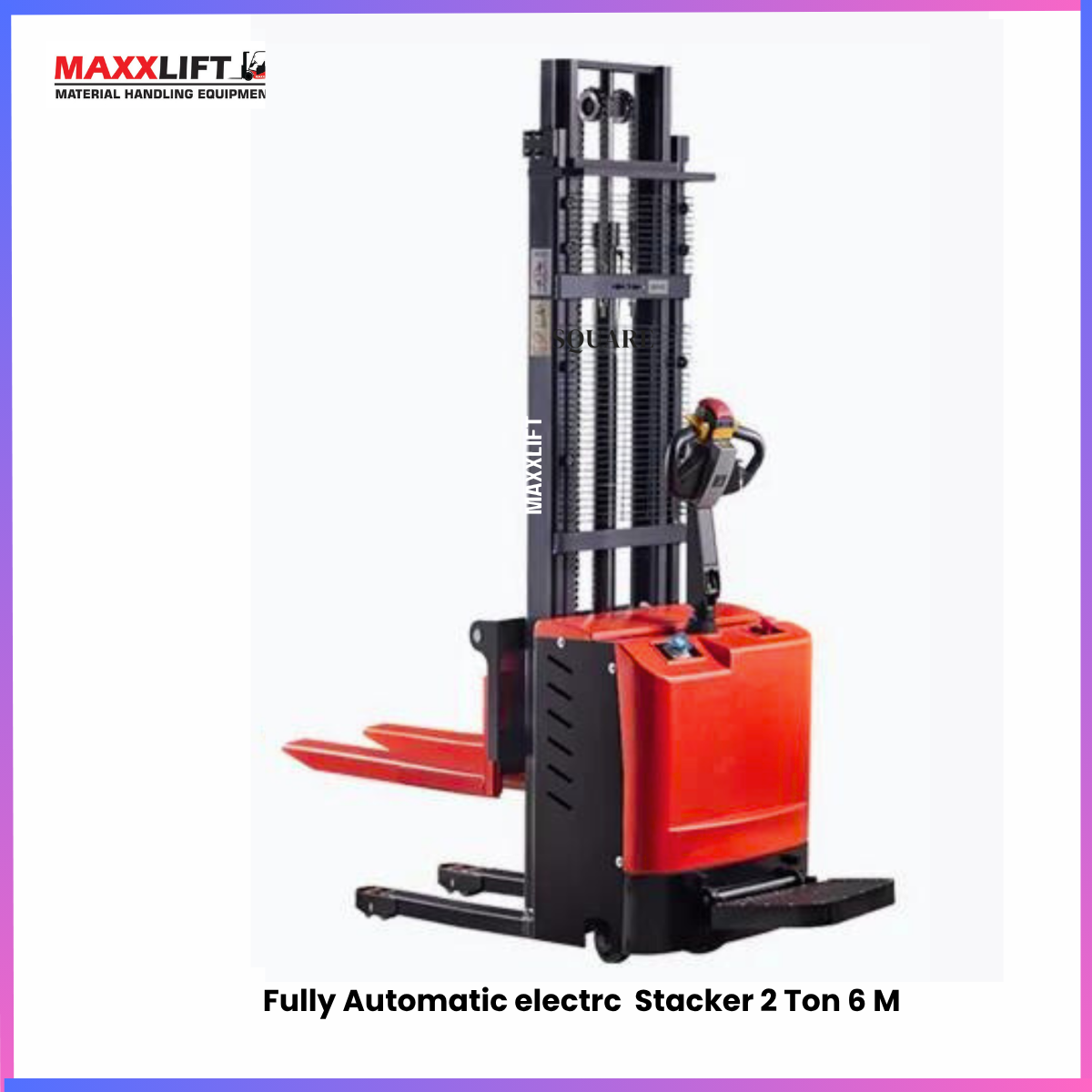

Machine Description
The reinforced mast supports up to 6 meters of lift height with excellent structural rigidity.
Its electromagnetic braking system ensures safety on ramps and during descent.
PU wheels provide smooth movement and stability on warehouse floors, while the ergonomic drive handle offers precision steering.
Designed for indoor logistics, it maximizes efficiency with zero emissions and low running costs.
Product Specifications
| Parameter | Detail | Parameter | Detail |
|---|---|---|---|
| Model No. | Maxx-2T-6M Fully Electric Pallet Stacker | Rated Lifting Weight | 2000 kg |
| Door Frame Lifting Height | 6000 mm | Load Centre Distance | 500 mm |
| Height of Cargo Fork After Descent | 90 mm | Turning Radius | 1580 mm |
| Minimum Channel Requirement | 1850 mm | Door Still Height | 2580 mm |
| Body Length (Pedal Stacking) | 1980 mm | Total Body Width | 1150 mm |
| Fork Outer Width | 720 mm | Cargo Fork Width | 400 mm |
| Standard Fork Size (L×W×H) | 1000 × 160 × 50 mm | Minimum Width | 320 mm |
| Lift Speed (Full Load / No Load) | 85 / 110 mm per second | Driving Speed (Full / Empty Load) | 4 / 6 km per hour |
| Maximum Ramp Level (Full / No Load) | 5% / 7% | Tyre Type | PU / PU |
| Bearing Wheel Size | 80 × 70 mm | Drive Wheel Size | 250 × 80 mm |
| Balancing Wheel Size | 120 × 50 mm | Control Form | Station Drive Type |
| Speed Regulation Mode | MOS Stepless Speed Control System | Brake Mode | Electromagnetic Braking |
| Battery Operating Time | 4–5 Hours Continuous | Battery Voltage | 24 V |
| Lift Motor | 2.2 kW | Drive Motor | 1.2 kW |
| Controller | Coty Us 1203 | Hydraulic Oil | 46# |
| Operating Weight | 1050 kg | Paint Finish | Orange and Black Powder Coating |
Key Features
- Fully electric lift and travel
- 6 m lift height for tall warehouse racks
- Powerful 2.2 kW lift and 1.2 kW drive motors
- Advanced MOS speed control system
- Electromagnetic braking for safety
- PU wheels for smooth movement
- Compact turning radius for tight aisles
- Low maintenance and zero emission
Applications
- High-rack warehousing and storage
- Packaging and logistics centres
- Industrial and production lines
- Distribution and cold storage units
- Loading and unloading of heavy pallets
Services and Support
MAXXLIFT offers complete installation, operator training, and preventive maintenance.
On-site service within 24–48 hours.
Spare parts and technical support available through Sonipat, Kundli, and Bhiwadi (Gujarat branch coming soon).
Warranty
Standard 12-month warranty covering major electrical and mechanical components under normal working conditions.
Extended warranty and AMC available on request.
Delivery Time
Standard delivery within 2–3 weeks after order confirmation.
Immediate dispatch available for in-stock models.
Delivery Locations
PAN India delivery covering Delhi NCR, Haryana, Punjab, Rajasthan, Uttar Pradesh, Gujarat, and Maharashtra.
Why Choose MAXXLIFT
- Heavy-duty Indian-built stacker for tall lifting
- Strong mast and frame for long life
- Smooth operation with high stability
- Zero emission & low running cost
- Reliable after-sales and nationwide service
